Pfu-X Core Kit

Kit for high accuracy PCR and Ligase-free cloning

PCR-237S

For general laboratory use.

Unit Definition: One unit is defined as the amount of the enzyme required to catalyze the incorporation of 10 nmol of dNTP into an acid-insoluble form in 30 minutes at 74 °C.

Shipping: shipped on gel packs

Storage Conditions: store at -20 °C
avoid freeze/thaw cycles

Shelf Life: 12 months

Form: liquid

Concentration: 2.5 units/μl

Description:
Pfu-X Core Kit contains all reagents required for PCR (except template and primer) in one box combining simple handling with high flexibility. The premium quality polymerase, ultrapure dNTPs and the optimized complete reaction buffer ensure superior amplificationresults.

Pfu-X Polymerase is the ideal choice for applications where the efficient amplification of DNA with highest fidelity is required.
The enzyme is a genetically engineered Pfu DNA polymerase, showing a 2-fold higher accuracy and an increased processivity, resulting in shorter elongation times.
The enzyme catalyzes the polymerization of nucleotides into duplex DNA in 5'→3' direction but does not possess a 5'→3' exonuclease replacement activity. Its inherent 3'→5' exonuclease proofreading activity results in a greatly increased fidelity of DNA synthesis compared to Taq polymerase. Pfu-X Polymerase-generated PCR fragments are blunt-ended.
The enzyme is highly purified and free of bacterial DNA.

Fidelity of the enzyme:
Pfu-X Polymerase is characterized by a 50-fold higher fidelity compared to Taq polymerase and a 2-fold higher fidelity compared to standard Pfu polymerase.
ERPfu-X Polymerase = 0.25 x 10-6
The error rate (ER) of a PCR reaction is calculated using the equation ER = MF/(bp x d), where MF is the mutation frequency, bp is the number of base pairs of the fragment and d is the number of doublings
(2d = amount of product / amount of template).

Content:

Recommended 50 μl PCR assay:

Recommended cycling conditions:
Three-step standard protocol

Two-step protocol for amplification of longer fragments (>3 kb)
Please note that for performing two-step cycling a sufficiently high primer Tm is necessary. If Tm of primers is below 65 °C or two-step PCR does not yield a sufficient product quality the three-step cycling protocol is recommended.

For optimal specificity and amplification an individual optimization of the recommended parameters may be necessary for each new template DNA and/or primer pair.

Ligase-free Cloning

Ligase-free Cloning is based on a cloning technique invented by Quan and Tian in 2009. It offers a number of advantages over conventional cloning methods. The system:

• works with any vector that can be linearized
• allows efficient cloning even into blunt end vectors
• allows directed cloning into single-cut vectors
• allows fast and easy preparation of vector and insert with no or only few purification steps
• does not require to dephosphorylate the vector
• allows the use of any restriction enzyme that linearizes the vector even if its recognition site(s) are present in the insert
• does not need a ligation step
• does not add additional sequences to the plasmid or the insert

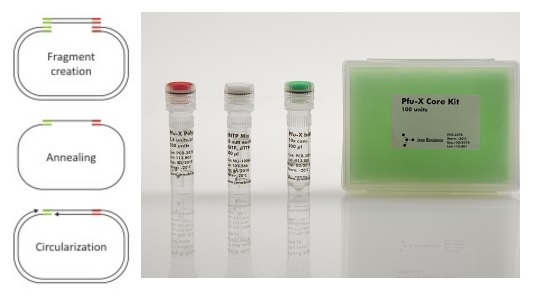

Principle (see Fig. 1)

Ligase-free Cloning is based on generation of inserts with homologous ends to the linearized vector.
In a circularization reaction, vector and insert anneal due to their homologous ends.
Using a specially selected DNA polymerase, the resulting single-stranded plasmids are recircularized.
These plasmids can directly be used for transformation. They still have two nicks each, which will be repaired by E. coli's endogenous DNA repair system and thus do not have to be ligated in vitro.

Supplements (to be provided by user)
Restriction enzymes
PCR purification kit
Gel extraction kit
Competent E. coli cells

Protocol

1. Vector preparation
Linearization with more than one enzyme will result in a higher percentage of positive clones. If the used restriction sites are not reconstructed after cloning and not present in the target fragment, the inactivation or purification steps can be omitted. Make sure the vector is linearized completely to reduce background in the transformation step (chapter 5).

1.1 With enzymes that can be heat inactivated:

• Linearize 500 ng of vector in 20 μl total reaction volume in Pfu-X Buffer, use at least 2 units of enzyme per μg of plasmid DNA
• Refer to Table 1 for optimal buffer concentrations for each enzyme
• Heat inactivate restriction enzymes

1.2 With enzymes that cannot be heat inactivated:

• Linearize 2 μg of vector in 40 μl total reaction volume in Pfu-X Buffer, use at least 2 units of enzyme per μg of plasmid DNA
• Refer to Table 1 for optimal buffer concentrations for each enzyme
• Remove enzymes with a DNA purification kit

Table 1: Optimal final Pfu-X Buffer concentrations for individual restriction enzymes
