[Nanografi 공식 대리점]Graphene Sheet, Size: 10 cm x 10 cm, Thickness: 35 µm, Highly Conductive(NG01GS0104)
- AI바이오허브 오래 전 2025.04.16 22:16 제품소개 인기
-
252
0

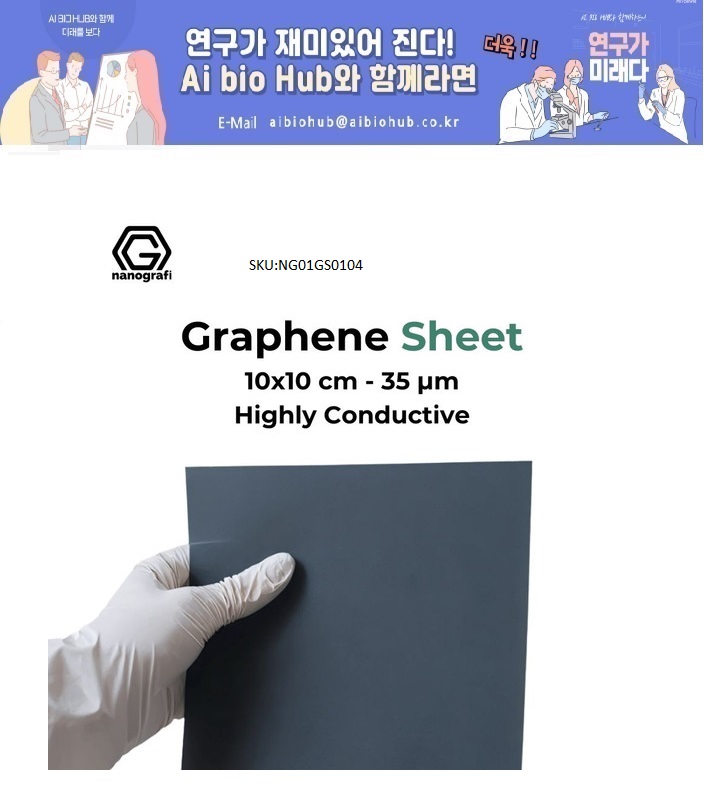

Graphene Sheet, Size: 10 cm x 10 cm, Thickness: 35 µm, Highly Conductive
- SKU:
- NG01GS0104
- Graphene Sheet Size: 10 cm x 10 cm, Highly Conductive,Thickness: 35 µm
Graphene Sheets are essentially the finest materials in the world. Graphene sheet is a one-atom-thick planar sheet of carbon iotas which are intensively packed in a hexagonal lattice structure. Graphene Sheets show high electrical conductance at room temperatures. They are used as fillers for the improvement of electrical and mechanical properties in composite materials. Graphene sheets have a vital importance for applications in biomaterials, biosensors, biomedical devices and drug delivery. You can buy Graphene Sheet with low prices and high quality at Nanografi.
Technical Properties of Graphene Sheet
Size (cm)
10 x 10
Thickness (µm)
35
Thermal Conductivity In Plane (W/mK)
550
Density (gr/cm3)
1,8
Tensile Strength (MPa)
10
Electrical Conductivity In Plane (S/cm)
3700
EMI Shielding dB @30 MHz - dB @1.5 GHz
53 -58
Electrical Resistivity (Surface (Ω/sq) )
0.06
Max Operating Temperature (°C)
450
RoHS Compliant
Yes
Thermal Conductivity and Spreading -In-plane conductivity above 550 W/mK
Electrical Properties - Formulations are available with surface resistivity ranging as low as 0.04 Ω/sq.
Potential Applications
• Thermal management and heat spreading
• EMI Shielding
• Electrodes for batteries and Supercapacitors
Current Applications
- Consumer electronics: smartphones, tablets, PCs, TVs
- LED lighting
- Energy storage
- Automotive
- Industrial
- Medical
- Military and aerospace
Graphene Sheet -SEM Image
Graphene Sheet- Raman
