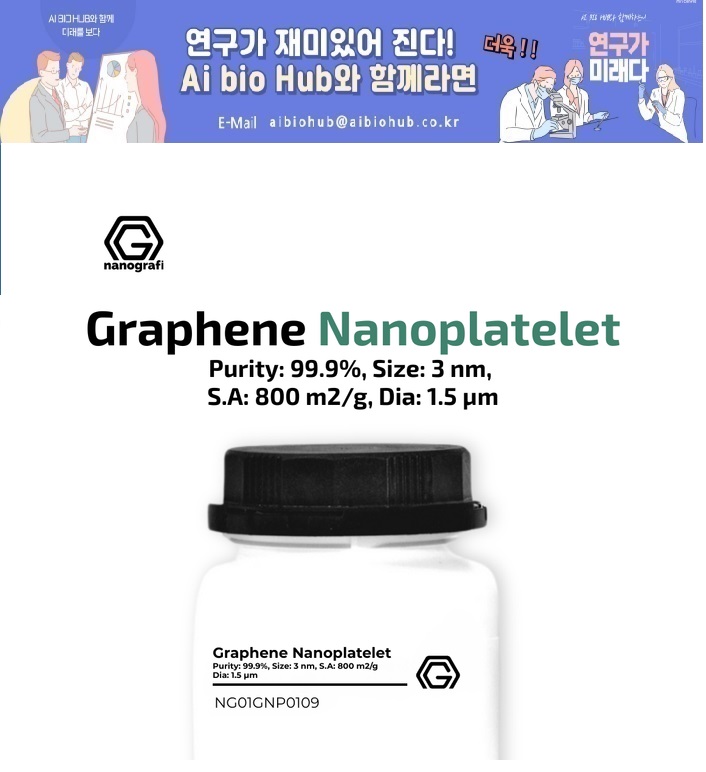

Graphene Nanoplatelet, Purity: 99.9%, Size: 3 nm, S.A: 800 m2/g, Dia: 1.5 μm

SKU:NG01GNP0109

Graphene Nanoplatelets are nanoparticles consisting of short stacks of platalet-shaped graphene sheets

that are in a planar form. Graphene nanoplatelets are excellent electrical and thermal conductors as a result

of their pure graphitic composition. Graphene nanoplatelets help increase thermal, electrical conductivity and

stability and improve barrier properties. Unique features of graphene nanoplatelets benefit it greatly to gain

a place in the market.

Applications of Graphene Nanoplatelets

Use as a high performance additive for composites with PPO, POM ,PPS, PC, ABS, PP, PE, PS, Nylon and rubbers.

Can improve composites tensile strength, stiffness, corrosion resistance, abrasion resistance and anti-static

electricity and lubricant properties.

For all mechanical properties modifications, typical amounts are about 2-6wt%

For conductivity modification, typical amounts are about 2-8wt%

Additional Information:

The addition of Graphene to different composites show improvements in their physical

properties. These improvements include electrical conductivity, thermal conductivity, hardness, strength, viscosity etc.

Moreover, graphene can replace materials that are used in today’s applications resulting in enhancement of their

applications. For example graphene can be integrated into plastics such as epoxy to create a material that can replace

steel in the structure of aircraft, improving fuel efficiency, range and reducing weight. It could even be used to coat

aircraft surface material to prevent electrical damage resulting from lightning strikes due to its high conductivity.
