20 bp DNA Ladder

20 bp to 200 bp log scale

ready-to-use, orange

Catalog#: M-212S

For general laboratory use.

Shipping: shipped on gel packs

Storage Conditions: store at -20 °C

Short term storage (up to 1 month) at 4 °C possible.

Shelf Life: 12 months

Form: liquid, DNA fragment mix in 10 mM Tris-HCl pH 7.5, 10 mM EDTA, 10 % (w/v) Glycerol and Orange G

Color: orange

Concentration: 105 ng/μl

Description:

20 bp DNA Ladder consists of 10 DNA fragments ranging from 20 bp to 200 bp and is supplied in ready-to-use format

containing an orange tracking dye. It allows sizing and concentration estimate of DNA fragments on agarose gels

generated by PCR or restriction digest.DNA log scale ladders are well suited for combination if small and large

fragments should be analyzed on one gel.

Recommended Load:

5 μl per lane

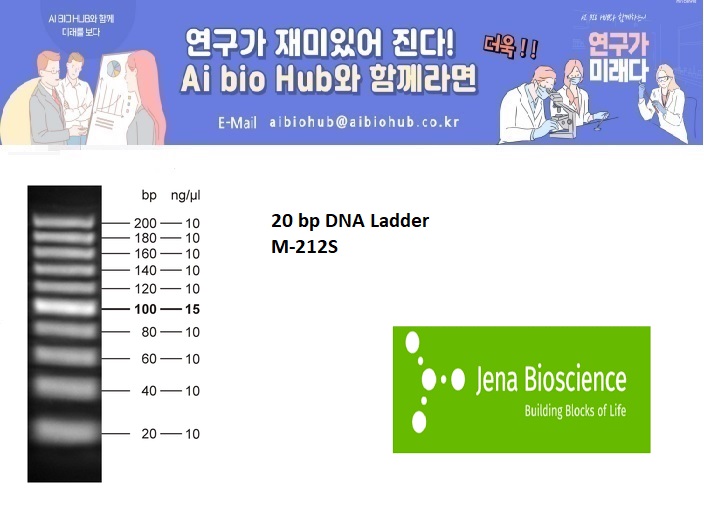

DNA Fragments:

20, 40, 60, 80, 100, 120, 140, 160, 180, 200 bp
